You’ve got a second monitor ready to go, but your GPU has one HDMI and one DisplayPort. So how do you connect dual monitors with HDMI and DisplayPort without buying the wrong cable or adapter? It’s actually straightforward once you understand the few variables involved.

In our research, the most common mistake is assuming any adapter will work. Manufacturer specifications show that a passive adapter works in some cases, but an active adapter is required in others. The difference comes down to your GPU’s port layout and the monitor’s native resolution.

Let’s walk through exactly what you need.

---

Can You Mix HDMI and DisplayPort for Dual Monitors? (Quick Answer)

Yes, you can mix HDMI and DisplayPort for dual monitors. Your GPU treats both as independent outputs. Windows and macOS extend the desktop across them automatically.

You need the right cables or adapters. Check your GPU ports and monitor inputs first. That’s the whole trick.

Image source: Bing (Web (fair-use with source credit))

---

What You Need to Check Before You Buy Anything

Before you plug anything in, take inventory. You don’t want to discover you’re missing a cable when both monitors are sitting on your desk.

Your GPU or laptop port layout

Desktop graphics cards typically have one HDMI port and three DisplayPort ports. Laptops vary widely. Some have a full-size HDMI plus a USB-C port that supports DisplayPort alt mode.

Others have mini DisplayPort.

Open the back panel of your desktop or check the sides of your laptop. Count the ports. Write down which ones you have.

This determines whether you need cables or adapters.

Your monitor’s available inputs

Most modern monitors include at least one HDMI and one DisplayPort input. Budget monitors sometimes skip DisplayPort entirely. Older monitors may only have DVI or VGA.

Look at the back of each monitor. Find the input labels. If one monitor lacks DisplayPort, you’ll need an adapter.

If both have both ports, you can use a straight HDMI-to-HDMI cable on one and a DisplayPort-to-DisplayPort cable on the other.

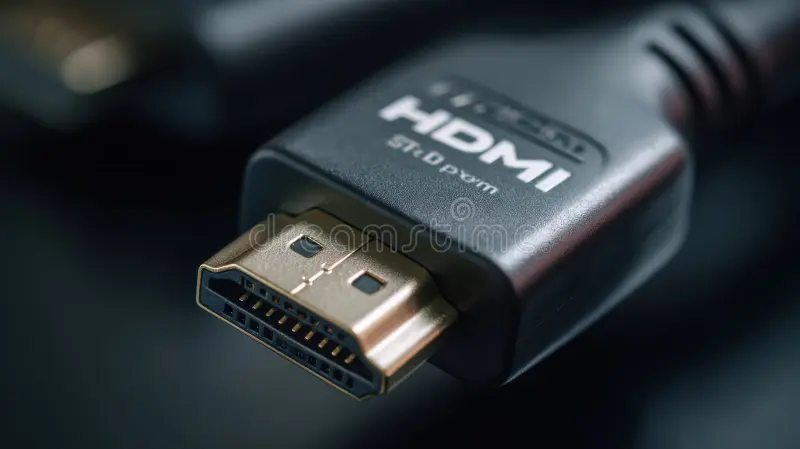

Cable types and adapter requirements

HDMI cables are universal. DisplayPort cables come in standard and Mini versions. If your laptop has Mini DisplayPort, you need a Mini DisplayPort-to-DisplayPort cable.

Here’s where the adapter question comes in. If your GPU has one HDMI and one DisplayPort, and both monitors have HDMI inputs, you need a DisplayPort-to-HDMI adapter. That adapter type matters a lot.

We cover that in the active vs passive section below.

Image source: Bing (Web (fair-use with source credit))

---

HDMI vs DisplayPort for Your Second Monitor – What Actually Matters?

For a dual monitor setup with mixed cables, the port type on your second monitor changes the practical options. Let’s break down the key differences.

Which port should you use for your primary monitor?

Your primary monitor is the one you’ll game or do precise work on. If you care about higher refresh rates, put the DisplayPort on that monitor. DisplayPort 1.4 supports 144Hz at 1440p and 120Hz at 4K.

HDMI 2.0 maxes out at 60Hz at 4K.

But if you’re just doing office work or browsing, the difference is negligible. Use whichever cable is longer or more convenient.

Which port for the second monitor?

The second monitor usually doesn’t need the highest bandwidth. HDMI is perfectly fine for a secondary productivity display. If your second monitor only has HDMI and your GPU only has DisplayPort free, you’ll use an adapter.

That’s where the next section comes in.

---

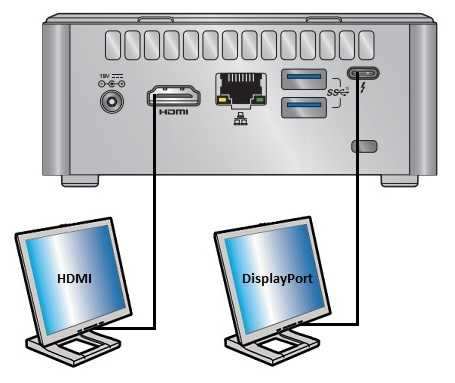

Step-by-Step: Connecting Two Monitors with HDMI and DisplayPort

Follow this workflow exactly. If you hit a snag, skip to the next step instead of restarting.

Image source: Bing (Web (fair-use with source credit))

Step 1 – Power down and plug in the cables

Turn off both monitors and your PC or laptop. Plug the HDMI cable into monitor 1 and the corresponding port on your GPU. Plug the DisplayPort cable into monitor 2 and the DisplayPort port on your GPU.

If you need an adapter, attach it to the DisplayPort cable before plugging into the GPU. Do not connect adapters after powering on. Hot-plugging can sometimes cause issues.

Step 2 – Power on and check detection

Turn on your monitors first, then your PC. Watch both screens during boot. The second monitor may stay black until Windows or macOS loads.

Once the OS starts, go to display settings.

• Windows: Right-click the desktop and select Display settings. You should see two rectangles representing your monitors. If only one appears, click Detector.
• macOS: Open System Preferences > Displays. Both monitors should show up in the arrangement pane.

Step 3 – Configure display mode and layout

Click the drop-down labeled “Multiple displays”. Choose “Extend these displays”. Avoid “Duplicate” unless you want the same image on both.

Now arrange the rectangles so they match your physical desk layout. Drag monitor 2 to the left or right of monitor 1. Apply the changes.

Step 4 – Set the correct resolution and refresh rate per monitor

Click on monitor 1 in the settings. Scroll to Display resolution. Choose the recommended resolution (usually the highest).

Repeat for monitor 2.

For refresh rate, scroll down to Advanced display settings or Display adapter properties. Set the highest refresh rate that your monitor supports. If your second monitor is only 60Hz, leave it at 60Hz.

Step 5 – Fix it if one monitor stays black (decision branch)

If the second monitor remains black after all this, test these branches in order:

• Branch A: Swap the cables. Connect monitor 1 via DisplayPort and monitor 2 via HDMI. If the black screen follows the cable, the cable is bad.
• Branch B: If the black screen stays with the same monitor, try a different input port on that monitor (some have two HDMI inputs). Switch the input via the monitor’s OSD menu.
• Branch C: Update your GPU drivers. Outdated drivers often cause detection failures. Download the latest from NVIDIA or AMD directly.
• Branch D: If nothing works, your adapter may be wrong. See the next section.

---

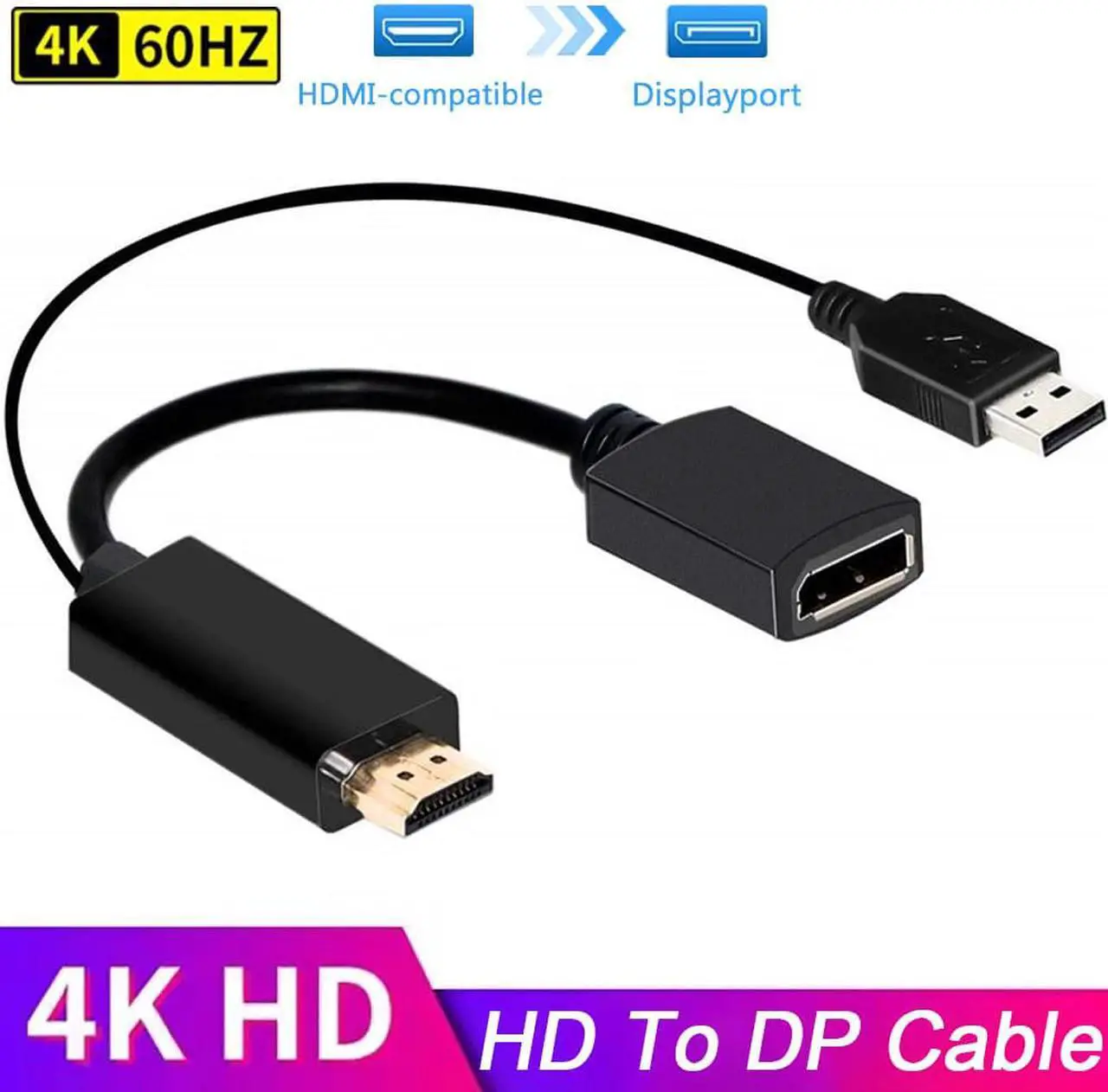

Active vs Passive Adapters: Which One Do You Actually Need?

This is the single most common source of confusion. Buy the wrong adapter and your second monitor stays black.

What’s the technical difference?

A passive adapter is a simple pin-to-pin converter. It takes the DisplayPort signal and re-pins it to HDMI. It works only when the GPU outputs a native HDMI signal over the DisplayPort.

Most modern GPUs (NVIDIA GeForce 10 series and newer, AMD RX 400 and newer) can do this.

An active adapter contains a small chip that actively converts the DisplayPort signal to HDMI. It works with any GPU, including older models. Active adapters are also required when you need to output dual-link DVI or when the monitor’s resolution exceeds what passive conversion can handle.

When do you need an active adapter?

Here’s the rule of thumb based on real-world feedback and manufacturer specs:

How to tell which adapter you have

Look at the adapter body. Passive adapters are small and lightweight. Active adapters are larger and heavier because of the conversion chip inside.

Some active adapters even have a USB power cable.

If you already have a passive adapter and it works, great. If your second monitor stays black after every other troubleshooting step, exchange it for an active adapter. That chip often solves the handshake problem.

Image source: Bing (Web (fair-use with source credit))

---

Common Mistakes That Stop Your Second Monitor from Working

Even with the right cables and adapters, a few easy-to-make mistakes can keep that second monitor dark. Here are the most common ones we see in user reports.

Using the wrong adapter type

You bought a passive adapter when your setup needs an active one. This is the number one cause of black screens on mixed HDMI and DisplayPort setups. If the monitor stays black after every other step, swap the adapter.

It costs a few extra dollars and solves the problem more often than not.

Ignoring GPU driver updates

Drivers matter more than people think. An outdated driver often fails to negotiate the HDMI and DisplayPort handshake properly. Check your GPU manufacturer’s website directly.

NVIDIA and AMD both release driver updates every few months. Install the latest one. Reboot.

Try again.

Forgetting to select the correct input on the monitor

This one feels silly, but it happens constantly. You plug the cable in, but the monitor is still set to HDMI 1 instead of HDMI 2 or DisplayPort. Press the input button on your monitor.

Cycle through the options until you see the correct source light up. It’s a ten-second fix.

Daisy-chaining when your monitors don’t support MST

Daisy-chaining is a DisplayPort feature that lets you run one cable from the GPU to monitor 1, then another from monitor 1 to monitor 2. But both monitors must support Multi-Stream Transport. Most budget monitors don’t.

If you tried daisy-chaining and the second monitor stays black, connect each monitor directly to the GPU with its own cable.

Mixing cables with different performance standards

Not all HDMI cables are the same. A cheap HDMI 1.4 cable can’t handle 4K at 60Hz reliably. DisplayPort cables also have version differences.

Use a cable that matches or exceeds your monitor’s resolution and refresh rate. If you see flickering or no signal, swap the cable with a known good one.

---

Who Should Use a Splitter or Dock Instead of Direct Cables?

Sometimes a direct cable connection isn’t the best approach. Here’s when to consider alternatives.

When a splitter makes sense

An HDMI splitter takes one video signal and duplicates it across two screens. It does not extend your desktop. Both monitors will show the same image.

Splitters are useful for digital signage, presentation setups, or when you need a mirror display. For productivity, they’re useless.

When a docking station makes sense

If your laptop has only one HDMI port and no DisplayPort, a docking station adds multiple video outputs. Docks connect via USB-C or Thunderbolt. They give you dedicated HDMI and DisplayPort ports.

This is the cleanest solution for laptop users who want dual monitors without adapter juggling.

Our research shows that a USB-C dock with dual video outputs costs between $60 and $150. That’s more than a simple adapter, but it also adds USB ports, Ethernet, and power delivery. If you move between desk and coffee shop often, a dock saves cable management headaches.

When direct cables are still best

Desktop PC users with a dedicated GPU should stick with direct HDMI and DisplayPort cables. You save money. You avoid extra latency.

You keep the setup simple. Docks add a possible point of failure. If your GPU has the ports you need, use them directly.

---

Expert Tips for a Clean, Reliable Dual Monitor Setup

A few small choices make a big difference in long-term reliability.

Use the right cable length

Longer cables can cause signal degradation. For HDMI, keep it under 15 feet passive. For DisplayPort, under 10 feet.

If you need more distance, use an active cable or a signal booster. Coil excess cable gently. Never bend cables at sharp angles behind the desk.

Label your cables

When you need to move monitors or troubleshoot, knowing which cable goes where saves time. Use a piece of masking tape and a marker. Write “monitor 1 HDMI” and “monitor 2 DP.” It takes thirty seconds and prevents frustration later.

Update your GPU drivers on a schedule

Set a reminder every three months to check for driver updates. This prevents handshake issues that appear after OS updates. It also keeps you compatible with future monitor firmware changes.

Invest in a cable management kit

Cheap velcro straps can be bought in bulk. Bundle the HDMI and DisplayPort cables together behind your desk. Keep them away from power cables to reduce electrical interference.

A tidy setup also reduces the chance of a cable being kicked loose.

Test both refresh rates

Even if your second monitor is a basic 60Hz panel, confirm the refresh rate in display settings. Sometimes Windows defaults to 30Hz on the second display. That makes scrolling and mouse movement feel sluggish.

Set it to the monitor’s max refresh rate manually.

---

Frequently Asked Questions

Can I use an HDMI splitter to extend my desktop?

No. An HDMI splitter mirrors the same signal to both monitors. It does not create an extended desktop.

You need two separate video outputs from your GPU or a docking station to extend.

My GPU has one HDMI and one DisplayPort. Do I need an adapter?

If your second monitor has only HDMI input, yes. You need a DisplayPort to HDMI adapter. Check if a passive adapter works (modern GPUs usually do) or if you need an active one (older GPUs or high resolutions).

Will mixing cables affect performance or refresh rate?

No, as long as both cables support the monitor’s native resolution and refresh rate. Mixing HDMI and DisplayPort does not bottleneck performance. Each monitor runs independently at its own spec.

The only limit is the GPU’s total bandwidth.

Does cable length matter for dual monitors?

Yes. Long passive cables can lose signal. Keep HDMI cables under 15 feet and DisplayPort cables under 10 feet.

For longer runs, use an active cable or a signal repeater.

Why does my second monitor only mirror instead of extend?

You likely selected “Duplicate” in display settings instead of “Extend.” Right-click the desktop, go to Display settings, and change the multiple displays option. If it still mirrors, your GPU may be set to clone mode in its control panel.

---

Quick Decision Guide: Which Setup Is Best for You?

Every setup is a little different. Use this quick if/then guide to land on the right solution.

Here’s the bottom line. Connecting dual monitors with HDMI and DisplayPort is one of those tasks that looks complicated until you see the pattern. Check your ports first.

Match the cables. Use the right adapter. Configure your OS.

Nine times out of ten, it just works.

If you hit a snag, work through the decision branch we outlined. Start with the cables. Then the adapter type.

Then the drivers. That sequence catches almost every problem. As of 2026, modern GPUs and monitors make mixing HDMI and DisplayPort easier than ever.

You’ve got this.
