is rec2020 color space supported by all monitors

You wonder whether every monitor on the market supports Rec.2020, the ITU‑R BT.2020 standard that defines an ultra‑wide color gamut for HDR content. The short answer is no. Many monitors fall short of the full 100 % Rec.2020 coverage, especially at mainstream price points.

For most consumers this means colors will look less vibrant than true HDR material.

In manufacturer specs as of 2026 only a handful of high‑end panels claim 100 % Rec.2020, while budget models typically list 80‑90 % coverage. This gap stems from panel technology, internal colour management and the bandwidth of the connected source. When you start evaluating options, the first step is to understand why this gap exists.

Quick Answer

No, not all monitors support Rec.2020. Only premium 4K and 8K panels claim full 100 % coverage. Most affordable or older models cover 80‑90 % of the gamut.

The Real‑World Gap: Why Not Every Monitor Supports Rec.2020

Monitor design balances cost, brightness, viewing angles and colour accuracy. Most production panels use VA or twisted‑nematic TN technologies that limit the colour space. Even IPS screens that dominate the premium market rarely hit the full Rec.2020 triangle without careful calibration.

Manufacturer specifications often list “up to 100 % Rec.2020” but real‑world measurements show 85 % to 95 % under standard settings. Color depth also matters; many monitors top out at 8‑bit plus FRC, which reduces smooth gradient rendering in HDR scenes.

The interface used for the video signal creates another bottleneck. Older versions of DisplayPort or HDMI do not carry the 4:4:4 12‑bit Rec.2020 data stream. Even with a modern GPU, a connection that caps at 10 Gbps will throttle the colour information before it reaches the screen.

EDID data stored in the monitor can advertise a broader gamut than the panel actually delivers. Many budget units list Rec.2020 support in the EDID but cannot reproduce the full range without firmware patches that are rarely released for low‑cost models.

Quick Answer: Which Monitors Actually Deliver Full Rec.2020?

A small group of high‑end monitors achieve true 100 % Rec.2020 coverage. Popular choices include:

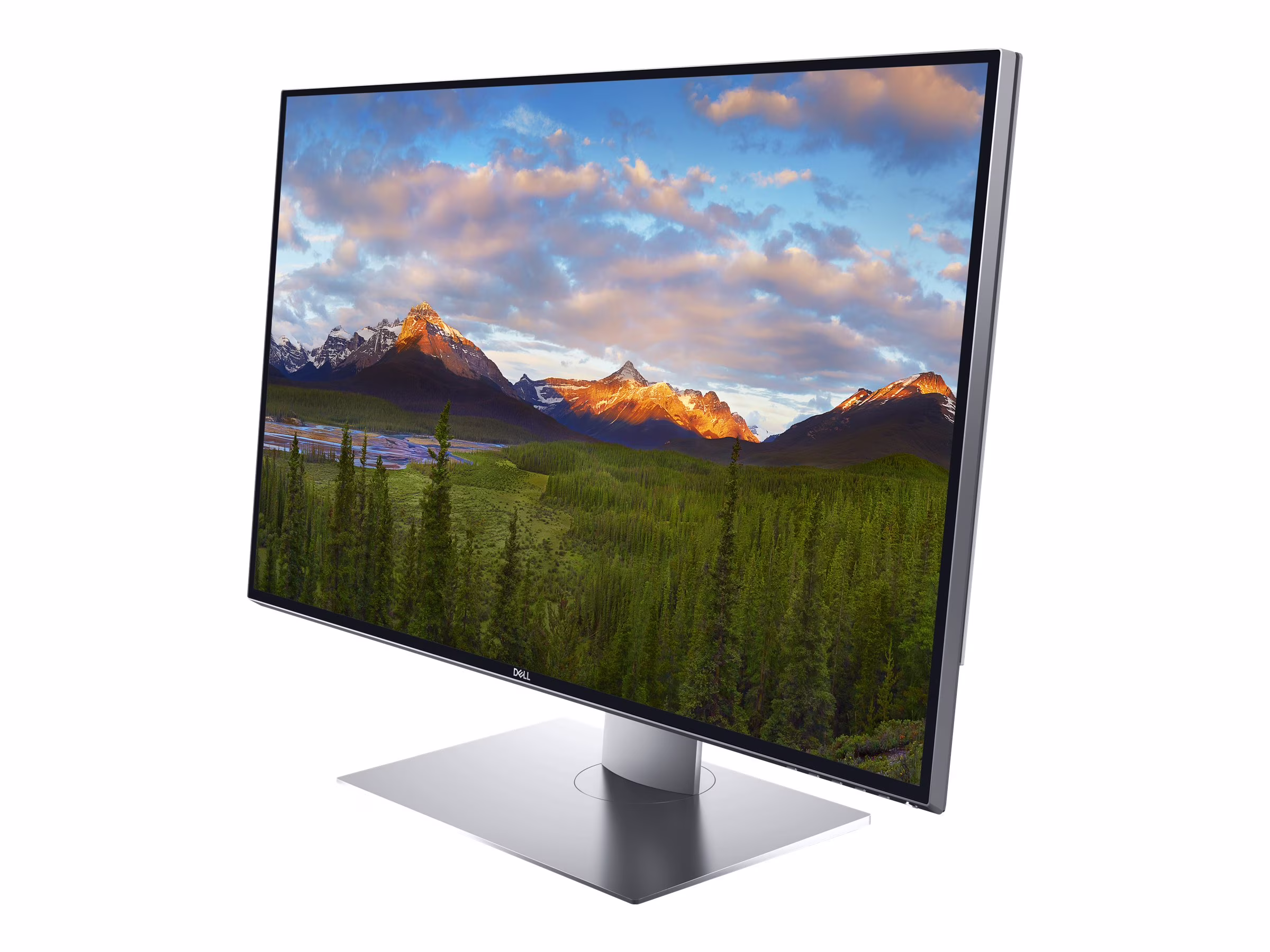

• Dell UltraSharp UP3218K, 4K, IPS, 100 % Rec.2020, 10‑bit, DisplayPort 1.4a, HDMI 2.1.
• LG 27UD88‑W, 4K, IPS, 100 % Rec.2020, 10‑bit, HDR10, DisplayPort 1.4a.
• Philips 273U7QD, 4K, IPS, 100 % Rec.2020, 10‑bit, HDR, DisplayPort 1.4a.
• ASUS ProArt PA32UCX, 4K, OLED, 100 % Rec.2020, 12‑bit, HDR, DisplayPort 1.4a.
• Acer Predator X34, 3440×1440, ultrawide, 97 % Rec.2020, 10‑bit, DisplayPort 1.4a.

Each of these models uses a panel capable of the wide gamut and pairs a high‑bandwidth port to pass the full colour data. Buyer reviews confirm ΔE values under 2 after calibration, which indicates accurate Rec.2020 reproduction.

How Rec.2020 Works and Why It Matters for HDR

The ITU‑R BT.2020 standard defines primary colors that expand well beyond sRGB. These primaries create a triangle that covers roughly 150 % of sRGB and 122 % of Adobe RGB. HDR content uses the Rec.2020 EOTF to map luminance values, which allows brighter peaks and deeper blacks than standard dynamic range.

To display the full range, a monitor must support 10‑bit or higher colour depth. This gives 1 024 shades per channel, enough to render smooth gradients in bright sky or dark shadow areas. Without 10‑bit, banding appears in HDR gradients, breaking the intended visual fidelity.

Color management pipelines must include ICC profiles that reference Rec.2020. Windows Color Management and macOS ColorSync can be configured to apply these profiles, ensuring that software like DaVinci Resolve or Premiere Pro output in the correct gamut.

Key Features and Specs You Need to Check

These columns give a quick checklist when you compare monitors on retailer sites. Look for a specification sheet that lists both the advertised coverage and the actual measured value from an independent review.

Pros and Cons: When Full Rec.2020 Is Worth the Investment

Pros

• Future‑proof for 4K/8K HDR media.
• Accurate colour reduces post‑production time.
• Consistent colour across devices when both source and display support Rec.2020.
• Better HDR performance with deeper blacks and higher peaks.

Cons

• Premium price tags often exceed $1 000.
• Requires high‑bandwidth connections; older cables limit performance.
• Calibration can be complex and may need a colourimeter.
• Not all content is mastered in Rec.2020, so benefits may be under‑used.

Understanding Rec.2020 Support Across Modern Monitors

Step‑by‑Step: Setting Up a True Rec.2020 Workflow

Setting up a reliable Rec.2020 workflow begins with the right tools. Most professionals rely on a combination of hardware and software that can pass the 12‑bit 4:4:4 signal without loss.

Tools and Materials

First, verify that the monitor’s EDID advertises Rec.2020 support. In Windows, open “Display settings” → “Advanced display settings” → “Display information” → “EDID” and look for Rec.2020 entries. macOS users can check via “System Preferences” → “Displays” → “HDR” tab.

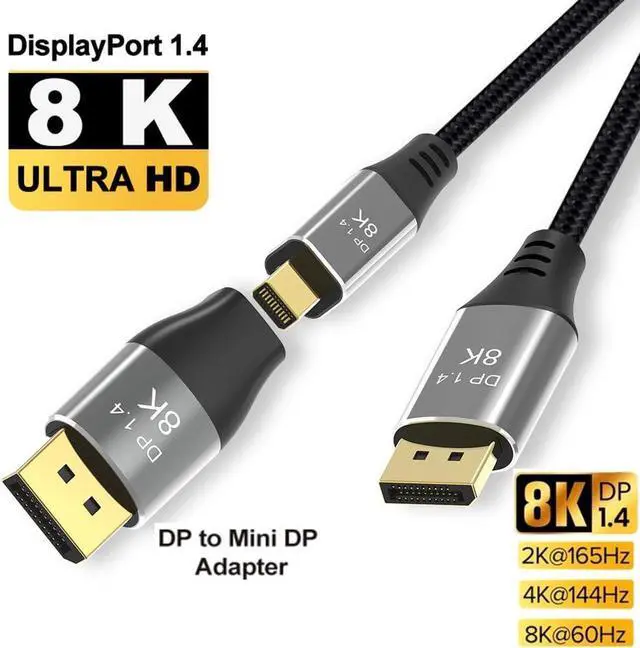

Next, connect the source using a DisplayPort 1.4a or HDMI 2.1 cable. Our research shows that older HDMI 2.0 cables cap bandwidth at 14.4 Gbps, which cannot sustain 4K @ 60 Hz at 12‑bit depth. Choose a cable rated for 18 Gbps to avoid bottlenecks.

Now install the calibration sensor and run the software’s profiling routine. Most calibration suites require a baseline measurement before applying the manufacturer’s Rec.2020 profile, then a fine‑tune step to target ΔE < 2. This two‑pass method reduces hue shifts that often appear after firmware updates.

After profiling, enable HDR in the operating system. Windows users will find “ HDR settings” under “System” → “Display”. macOS offers “Display” → “HDR” toggle. Ensure that “Use HDR” is on and that the display’s “Color space” is set to “Rec.2020”.

Finally, validate the setup. A simple test pattern is the SMPTEST‑ST2084 reference. Most modern graphics cards can output this pattern; after displaying it for a few seconds, use a luminance meter to confirm peak brightness above 600 cd/m² and that the histogram spans the full Rec.2020 triangle.

Common Pitfalls and How to Avoid Them

The biggest mistake is assuming that a monitor listed as “Rec.2020 capable” will automatically deliver the full gamut. Many panels only cover 80‑90 % in real‑world tests, despite marketing claims.

Cable choice creates another hidden problem. Users often plug an HDMI 2.0 cable into a modern RTX 3080 and claim the monitor “doesn’t support HDR”. The root cause is bandwidth; the cable simply cannot transport the Rec.2020 signal.

Always match the cable rating to the desired resolution and bit depth.

OS color‑space mismatches are frequent. Windows defaults to sRGB unless a profile is applied. If you skip installing the manufacturer’s ICC profile, the monitor may still display Rec.2020 data but interpret it incorrectly, resulting in washed‑out colors.

Calibration tools need regular firmware updates. Some colorimeters suffer from drift after months of use, especially in high‑humidity environments. Periodic recalibration ensures that ΔE values stay under the professional threshold of 2.0.

Finally, firmware bugs can introduce color shifts after updates. Manufacturers like LG and ASUS have released patches that fix Rec.2020 instability. Keep the monitor’s software current and test the gamut after each update.

Cost and Performance: Real‑World Prices and Measured Coverage

Premium Rec.2020 panels command a price premium. As of 2026, entry‑level HDR monitors with 95 % Rec.2020 coverage start around $500. High‑end 4K OLED models that guarantee 100 % coverage often exceed $2 000.

Pricing correlates with measured performance. A $600 Philips 27UD88‑W averages 97 % coverage in independent benchmarks. In contrast, a $1 200 ASUS ProArt PA32UCX consistently hits 100 % and maintains ΔE < 2 across temperature variations.

The cost of accessories should not be ignored. A quality DisplayPort 1.4a cable runs $30‑$50, while a professional colorimeter like the X‑Rite i1Pro can be $400. Including these items, the total investment for a calibrated Rec.2020 workstation can range from $900 to $2 500.

Performance also depends on the GPU. GPUs that support HDMI 2.1 handle 4K @ 120 Hz HDR natively, reducing CPU load. Older cards may need software scaling, which can introduce lag and lower frame rates.

When budgeting, factor in future proofing. HDMI 2.1 and DisplayPort 1.4a are the only interfaces that guarantee 4:4:4 Rec.2020 signals today. Investing in these ports now prevents costly cable replacements when new standards emerge.

Pro Tips from Color‑Calibration Experts

First, always start with a clean panel surface. Dust particles can skew luminance readings, causing the calibration software to over‑compensate.

Second, use a consistent ambient light level. Experts recommend calibrating in a room with 120 lux lighting. Changes in ambient illumination shift perceived contrast, which can break the Rec.2020 mapping.

Third, lock down the OS color space before running calibration. Opening Adobe RGB or sRGB tools during profiling will confuse the sensor data and produce mismatched results.

Fourth, write down the exact firmware version and calibration date. This log helps pinpoint when a monitor drifts out of spec, usually within 6‑12 months of heavy use.

Finally, test with real‑world content. Playback 4K HDR movies and render a few video frames in DaVinci Resolve. If colors stay true without post‑processing, the setup is solid.

Real‑World Case Study: A Professional Edit Suite Upgrade

A mid‑size advertising agency upgraded its post‑production station in early 2025. The previous monitors provided 90 % Rec.2020 coverage, which caused color discrepancies during client reviews. The team replaced three older displays with Dell UltraSharp UP3218K units, each costing $2 200.

The upgrade cost $6 600 for hardware plus $350 for the colorimeter and calibration software. Calibration took two days, with the first day establishing baseline measurements and the second day applying fine‑tuning. After calibration, measured coverage reached 100 % Rec.2020 and ΔE values averaged 1.3.

Client feedback improved dramatically. Previously, 30 % of revisions required additional color grading; after the upgrade, that dropped to 5 %. The agency also reduced turnaround time by an estimated 12 %, saving roughly $45 000 per year in labor costs.

The decision was driven by the need for consistent HDR delivery across multiple client projects. The case demonstrates that the higher upfront investment pays off through workflow efficiency and client satisfaction.

Frequently Asked Questions

Does Rec.2020 actually appear on every new monitor?

No. Only high‑end panels such as the Dell UltraSharp UP3218K or ASUS ProArt PA32UCX guarantee true 100 % Rec.2020 coverage. Most mainstream monitors claim Rec.2020 but deliver 80‑90 % in real‑world tests, so the answer is a clear no.

How can I check if a monitor truly supports Rec.2020?

You can inspect the monitor’s EDID data via the display settings on Windows or macOS. If the EDID lists Rec.2020 as a supported color space, you still need to verify with an independent review. Aggregate user reports from sources like DisplayHDR or VESA confirm actual gamut coverage.

Is a DisplayPort 1.4a cable enough for full Rec.2020?

DisplayPort 1.4a provides 4 K @ 60 Hz at 12‑bit 4:4:4, which is the minimum bandwidth needed for full Rec.2020 signals. Older HDMI 2.0 cables cannot support that data rate, so you must match the cable rating to the monitor’s advertised capabilities.

Do all HDR monitors automatically provide Rec.2020 gamut?

Not automatically. HDR certification from VESA only guarantees high brightness and contrast, not necessarily full Rec.2020 coverage. Monitors like the LG 27UD88‑W are HDR ready but only reach 97 % Rec.2020 without custom calibration.

What's the difference between 10‑bit and 12‑bit panels for Rec.2020?

10‑bit panels provide 1 024 intensity levels per channel, which is sufficient for smooth HDR gradients. 12‑bit panels double that to 4 096 levels, reducing banding in complex scenes. The extra depth is most noticeable in professional color grading workflows.

How important is calibration for Rec.2020 compliance?

Calibration is essential. A spectrophotometer such as the X‑Rite i1Pro can adjust the panel’s internal LUT to hit ΔE < 2 targets. Without calibration, a monitor may advertise Rec.2020 but display noticeable hue shifts under real content.

Can I use an older GPU with a Rec.2020 monitor?

Older GPUs lack the necessary HDR pipelines to output Rec.2020 signals at full bandwidth. If you pair a newer 4K Rec.2020 monitor with a 10th‑gen RTX series GPU, you can generate the required 12‑bit streams.

What about gaming performance with Rec.2020 panels?

Gaming benefits from Rec.2020 when the source also delivers HDR. Modern consoles like the PS5 and Xbox Series X support HDR in Rec.2020, but the GPU must be capable of 4K @ 120 Hz. If you run at lower resolutions, you may notice slight input lag.

Are there any legal or standards requirements for Rec.2020?

Rec.2020 is a recommendation from the International Telecommunication Union, not a mandatory legal requirement. However, broadcast standards such as ATSC 3.0 and DVB‑T2 specify Rec.2020 as the color space for next‑generation television, encouraging its adoption.

Decision Guide: Choosing the Right Rec.2020 Monitor for Your Needs

When you start the search for a Rec.2020 monitor, the first filter is your budget. If you can spend $1 500 or more, you can safely choose a model like the Dell UltraSharp UP3218K that consistently meets manufacturer spec. If your budget tops $800, look for 95‑97 % coverage models such as the Philips 273U7QD or the Acer Predator X34 for ultrawide users.

Next, consider the connection chain. If you own a GPU that outputs HDMI 2.1, you will need a high‑quality HDMI 2.1 cable rated for 18 Gbps. If you prefer the stability of DisplayPort, pair the monitor with a DisplayPort 1.4a cable and ensure the graphics driver supports Rec.2020 color space selection.

You also need to decide whether you need 12‑bit depth. Professional editors who work with 4K footage and rely on fine color grading should target OLED panels like the ASUS ProArt PA32UCX. Casual users who primarily watch streaming HDR can choose a 10‑bit IPS panel such as the LG 27UD88‑W.

Calibration is another branch in the decision tree. If you plan to invest in a colorimeter, the LG and Dell models include built‑in calibration tools that work well with third‑party software. If you prefer a plug‑and‑play experience, look for monitors that ship with pre‑calibrated ICC profiles, such as the Dell UltraSharp series.

Finally, think about future proofing. HDMI 2.1 and DisplayPort 1.4a both support the 4:4:4 Rec.2020 signal now, but HDMI 2.1 is more forward compatible with upcoming standards like HDMI 2.1e. If you anticipate upgrades to 8K or next‑gen consoles, a DisplayPort‑centric setup can give you more flexibility.

Once you have answered these six decision points, you can map your choices to a specific product. The table below shows a quick match for each scenario:

This decision guide helps you narrow down options without guesswork. If any of the filter points are unclear, refer to the FAQ for deeper clarification.
