how to connect curved gaming monitor to pc

So a curved gaming monitor isn't really that different from a flat one when it comes to connecting it to your PC. The ports are the same. The cables are the same.

The process is almost identical. The one real difference is how you route the cable around the curve and how you access the ports on the back. If you've ever connected a flat monitor, you already know most of what you need.

But there are a few small gotchas that trip people up.

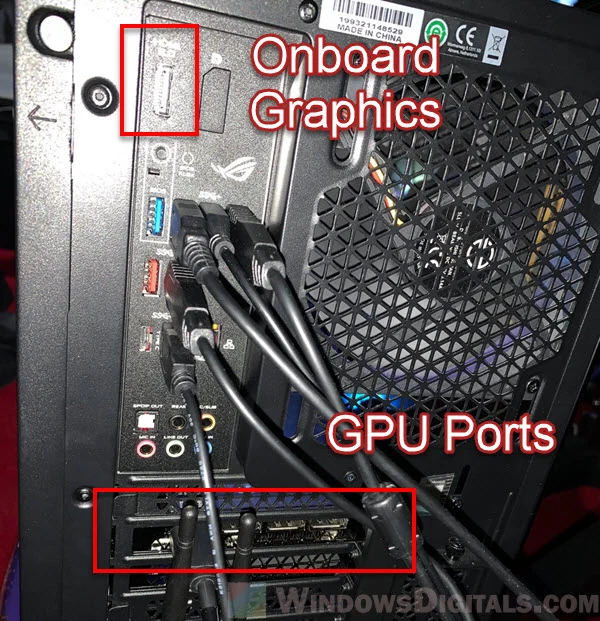

In our research, we found that the single most common mistake people make when trying how to connect curved gaming monitor to pc is plugging the cable into the wrong set of ports on the back of their computer. Specifically, they plug into the motherboard ports instead of the graphics card ports. That one error keeps the monitor from running at its full resolution and refresh rate.

As of 2026, nearly every dedicated gaming monitor supports at least 144Hz, and you need the right cable and the right port to hit that number. Let's walk through exactly what to do.

Why Seeing the Connection Matters

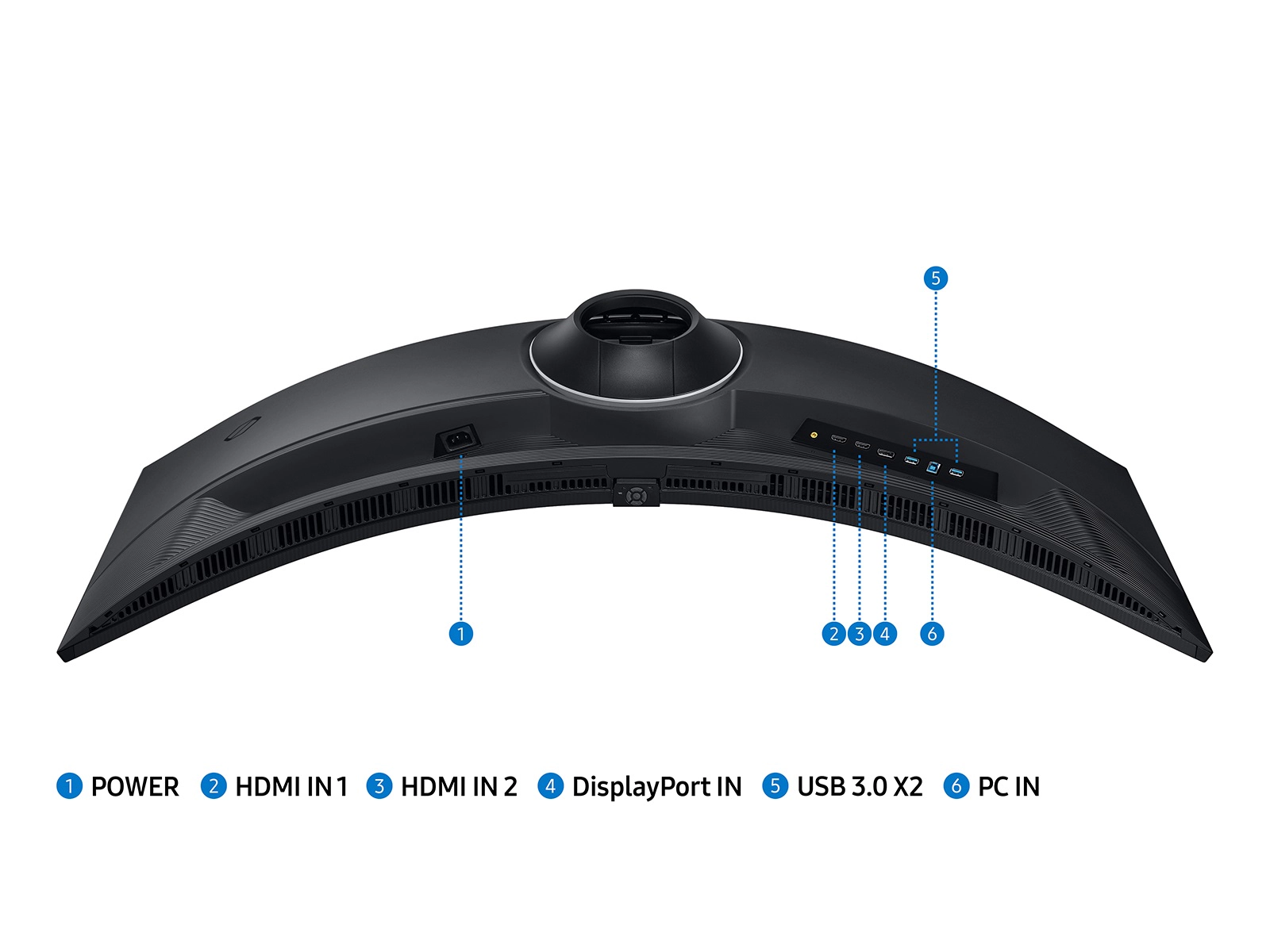

A curved monitor changes your setup in one physical way. The curvature means the ports on the back are not all lined up in a straight row like on a flat screen. They sit slightly angled.

That can make it harder to see which port you're reaching for, especially if you're working behind the monitor with limited space.

Image source: Bing (Web (fair-use with source credit))

When you try to plug in a cable blindly, you might push it into the wrong port or bend the connector. We've seen users snap the plastic housing on an HDMI cable because they forced it into a DisplayPort socket. The visual shape of each port matters.

A diagram or clear photo of the back of your monitor is incredibly helpful before you start. Keep your monitor's manual or product page open on your phone. It shows you exactly which port is which.

The other reason visuals matter is cable management. A curved monitor usually has a slight rear bulge. If you route the cable straight down, it can pull on the port because of the angle.

Many curved monitors come with a small cable clip or a channel built into the stand. That clip keeps the cable from straining the connection. You have to see where that clip is.

It's not always obvious.

Quick Answer: What You Actually Need

Connect the monitor to the graphics card. Pick the highest quality cable you have. Turn on the monitor and select the correct input source.

Adjust your PC's display settings.

Here is the short checklist.

• Use a DisplayPort cable if your card and monitor support it. DisplayPort 1.4 handles 1440p at 144Hz or 4K at 60Hz without issues. HDMI 2.1 is also great but less common on older GPUs.
• Plug the cable into the horizontal ports on your graphics card, not the vertical ports on the motherboard.
• Press the monitor's input button until the screen shows your PC's desktop.
• Open Windows display settings and set the resolution to the monitor's native value. Then set the refresh rate to the highest available.

That is the whole process compressed. The rest of this article goes deeper into each step, including the exact cables you need and the common visual mistakes that waste your time.

Core Explanation: How a Curved Monitor Connects to a PC

A curved gaming monitor is a display device. It receives a video signal from your computer through a cable. The cable connects to an output port on your PC and an input port on the monitor.

Image source: Bing (Web (fair-use with source credit))

The most common ports on a modern gaming monitor are HDMI and DisplayPort. Some also have USB-C with DisplayPort Alt Mode. That is less common but useful for laptops.

Your PC has two sets of video output ports. One set is on the motherboard. Those ports connect to the integrated graphics chip inside the CPU.

They work for basic displays but cannot handle high refresh rates or heavy gaming. The other set is on the graphics card, a separate expansion card plugged into the motherboard. Those ports connect to the powerful GPU that runs games.

You must plug your monitor into the graphics card, not the motherboard. That is the most important rule.

The cable carries a digital signal. The signal contains resolution data and refresh rate data. A higher resolution or higher refresh rate requires more bandwidth.

Older cables, like HDMI 1.4 or DisplayPort 1.2, have lower bandwidth limits. They might work for 1080p at 60Hz but fail at 1440p at 144Hz. Newer cables, like DisplayPort 1.4 or HDMI 2.1, handle the big numbers easily.

The curvature of the monitor does not affect the signal. It only affects how you physically connect the cable. The ports sit at an angle relative to the edge of the desk.

You need to push the cable in straight. If you push at an angle, you risk damaging the port.

Step‑by‑Step: Connecting Your Curved Monitor

Follow these steps in order. Take your time with the cable routing.

1. Unbox and place the monitor

Remove the monitor from the box. Place it face down on a soft surface like a blanket or the foam padding from the box. Attach the stand or VESA mount according to the manual.

The curve means the monitor is heavier in the middle. Make sure the stand is tight.

2. Connect the power cable

Find the power port on the monitor. It is usually a barrel connector or a standard C13 power socket. Some curved monitors use an external power brick.

If yours has one, do not hide the brick behind the monitor where it blocks airflow. Place it on the desk or on the floor.

3. Choose the right cable

Use DisplayPort if your graphics card and monitor both have it. DisplayPort supports high bandwidth and includes features like G-Sync and FreeSync. HDMI is fine for lower resolutions or if your GPU only has HDMI.

USB-C is good for laptops but check if the port supports video output. Your laptop's USB-C port must have a DisplayPort or Thunderbolt icon next to it.

4. Locate the correct ports on your PC

Turn your computer around. Look at the back. You will see a vertical cluster of ports near the top or middle.

Those are the motherboard ports. Below them, spaced apart horizontally, are the ports on your graphics card. They are usually covered with a metal bracket.

Your GPU ports sit lower on the case. The ports are horizontal (landscape) on the card. Plug your cable into one of those.

5. Plug the cable into the monitor

Gently push the cable into the matching port on the monitor. Do not force it. HDMI and DisplayPort connectors are shaped differently.

If it does not slide in, you have the wrong cable or the wrong orientation. Some curved monitors have ports facing downward. You might need to lift the monitor slightly to see them.

6. Route the cable without strain

Check the cable path. The curve of the screen means the cable might exit at an awkward angle. Use the cable clip on the stand if one is included.

Route the cable behind the stand and toward the desk. Avoid sharp bends near the connector. A sharp bend can break the internal wires over time.

7. Power on and test

Turn on the monitor. Then turn on your PC. The monitor should display the boot screen.

If it shows "No Signal" or a black screen, press the input button on the monitor's OSD (on-screen display). Cycle through HDMI1, HDMI2, DisplayPort, and USB-C until you see the desktop.

8. Configure Windows display settings

Right click on the desktop. Select Display settings. Scroll to Display resolution and choose the monitor's native resolution.

For a 1440p monitor, that is 2560 x 1440. For 4K, it is 3840 x 2160. Then click Advanced display settings.

Under Refresh rate, choose the highest one. If you see only 60Hz, you probably used the wrong cable or plugged into the motherboard.

9. Enable adaptive sync

If your monitor supports FreeSync or G-Sync, open the graphics control panel. For NVIDIA, open the NVIDIA Control Panel, go to Set up G-Sync, and enable it. For AMD, open AMD Adrenalin, go to Display, and turn on FreeSync.

The monitor must be connected with DisplayPort for G-Sync to work in most cases.

Key Identifiers: Which Cable Is Which?

Cables look similar. You need to tell them apart quickly.

Image source: Wikimedia Commons / Bretwa (CC BY-SA)

HDMI cables have a flat, wide connector with 19 pins. The connector is symmetrical. DisplayPort cables have a wider connector with a clipped corner on one side.

It is not symmetrical. DisplayPort connectors also have a small latch that clicks into place when fully inserted.

Here is a quick reference table.

The cable version is printed on the cable sheath. Look for text like "HDMI 2.1" or "DP 1.4". If you see no version text, assume it is older.

For a gaming monitor with high refresh rates, buy a cable that explicitly states the version.

USB-C cables are different. They have a small oval connector that fits either way. Not all USB-C cables support video.

Look for "DisplayPort Alt Mode" or a Thunderbolt logo on the cable.

One more identifier. The ports on the back of the monitor are labeled. Small text next to the port says "HDMI 1", "HDMI 2", "DP", or "USB-C".

Use your phone's camera to zoom in if the text is hard to read. Do not guess.
