What Cable Do I Need for 144Hz Monitor

·13 min read·by

So you've got a 144Hz monitor ready to go, but you're staring at a drawer full of cables wondering which one actually unlocks that smooth refresh rate. The answer to what cable do I need for 144hz monitor depends entirely on the ports on your graphics card, the ports on your monitor, and what resolution you're running. Grab the wrong cable and you'll be stuck at 60Hz without knowing why.

The good news is this isn't complicated once you know what to look for. DisplayPort 1.4 and HDMI 2.1 are the two standards that matter most as of 2026, but older versions can still work in certain situations. Let's walk through exactly what you need based on your specific setup.

what cable do I need for 144hz monitor

Quick Answer

DisplayPort 1.4 is the safest choice for 144Hz gaming on PC. It handles every common resolution at 144Hz without compromise. HDMI 2.1 also works perfectly if both your GPU and monitor support it. For 1080p 144Hz, even DisplayPort 1.2 or HDMI 1.4 can get the job done.

Always match your cable version to the lowest-spec port in your chain.

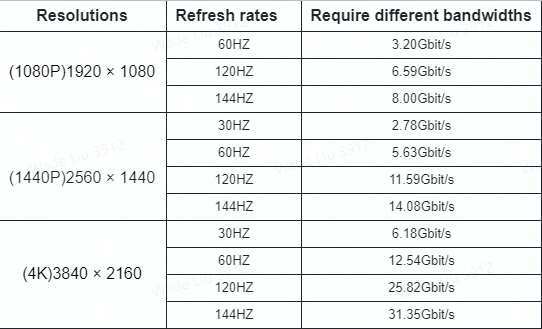

Quick Reference: Cable Requirements by Resolution and Refresh Rate

Before we dig into the details, here's a fast reference table. Find your resolution and refresh rate, then check which cable standards support it.

Resolution & Refresh RateMinimum Cable StandardRecommended Cable StandardNotes
1080p @ 144HzDisplayPort 1.2 or HDMI 1.4DisplayPort 1.4HDMI 1.4 works but with limited headroom
1440p @ 144HzDisplayPort 1.2 (with reduced blanking)DisplayPort 1.4HDMI 2.0 also works at 1440p 144Hz
4K @ 144HzDisplayPort 1.4 with DSCDisplayPort 2.1 or HDMI 2.1DSC required for DP 1.4 at 4K 144Hz
1080p @ 240HzDisplayPort 1.2DisplayPort 1.4HDMI 2.0 also supports this
1440p @ 240HzDisplayPort 1.4DisplayPort 2.1HDMI 2.1 works with DSC

Manufacturer specifications from VESA and the HDMI Forum confirm these bandwidth limits. Your specific monitor may have additional limitations, so always check its manual too.

Step 1: Check What Ports Your GPU and Monitor Actually Have

This is where most people go wrong. They buy a cable without checking what their hardware actually supports. The cable is only as good as the weakest link in the chain.

You need to look at two things: the output ports on your graphics card and the input ports on your monitor. The cable you need depends on matching the highest standard that BOTH devices share.

How to Check Your GPU Ports

Look at the back of your PC where the monitor cables plug in. Those ports are on your graphics card, not your motherboard. You'll typically see some combination of DisplayPort, HDMI, and maybe USB-C.

Here's how to identify what you have:

  • DisplayPort: Trapezoid-shaped connector, usually labeled "DP." Most gaming GPUs have one to three of these.
  • HDMI: Wider, flat connector. Looks like a USB port but wider and not rectangular.
  • USB-C / Thunderbolt: Small oval port. Some modern GPUs include this, especially compact models.

If you're not sure which generation your ports support, check your GPU model's specs on the manufacturer's website. An NVIDIA RTX 3060, for example, has DisplayPort 1.4a and HDMI 2.1. An older GTX 1060 might only have DisplayPort 1.2 and HDMI 2.0.

How to Check Your Monitor Ports

Look at the back or bottom of your monitor. The input ports should be labeled, either with text or in the user manual. Many 144Hz monitors ship with both DisplayPort and HDMI, but the versions vary wildly by model and year.

A budget 144Hz monitor from 2019 might only have HDMI 1.4 and DisplayPort 1.2. A premium 2024 model could have HDMI 2.1 and DisplayPort 1.4 with DSC. You need to know both before buying any cable.

GPU display output ports labeled

Step 2: Match Your Cable to Your Setup

Now that you know what ports you have, here's how to pick the right cable. We'll break this down by resolution because that's the biggest factor.

1080p at 144Hz

This is the most common 144Hz scenario and the most forgiving. You have several options:

  • DisplayPort 1.2: Handles 1080p at 144Hz easily. This is the minimum you should use.
  • DisplayPort 1.4: Ideal choice. Plenty of bandwidth headroom for HDR and Adaptive Sync.
  • HDMI 1.4: Technically supports 1080p at 144Hz with reduced blanking, but it's tight on bandwidth. Not recommended if you have DisplayPort available.
  • HDMI 2.0: Works perfectly fine for 1080p 144Hz with full RGB color.
  • DVI-D Dual Link: Can do 1080p at 144Hz, but it's an aging standard. Only use this if you have no other option.

For 1080p 144Hz, DisplayPort 1.4 is your best bet. It's widely available, affordable, and leaves room for G-Sync or FreeSync without any compromises.

1440p at 144Hz

This is where things get more specific. 1440p at 144Hz requires more bandwidth, so your cable choice matters more:

  • DisplayPort 1.2: Can handle 1440p at 144Hz with reduced blanking, but it's at the limit. You may lose full RGB color depth.
  • DisplayPort 1.4: The sweet spot. Handles 1440p 144Hz with full 8-bit RGB and Adaptive Sync. No compromises.
  • DisplayPort 1.4 with DSC: Supports 1440p at 144Hz with 10-bit color and HDR simultaneously.
  • HDMI 2.0: Supports 1440p at 144Hz with 8-bit RGB. Works well if your monitor has HDMI 2.0.
  • HDMI 2.1: Overkill for this resolution at 144Hz, but works perfectly if you have it.

If you're gaming at 1440p 144Hz, grab a DisplayPort 1.4 cable. It's the standard recommendation across the board and handles everything without breaking a sweat.

4K at 144Hz

This is the demanding end of the spectrum. 4K at 144Hz requires serious bandwidth:

  • DisplayPort 1.4 with DSC: Works, but relies on Display Stream Compression. The image quality loss is imperceptible, but not every monitor handles DSC well.
  • DisplayPort 2.1: The ideal choice if your GPU and monitor both support it. Handles 4K 144Hz without compression.
  • HDMI 2.1: Supports 4K at 120Hz natively. For 4K at 144Hz, you'll need DSC or drop to 4:2:0 chroma subsampling on some monitors.

For 4K 144Hz gaming, you need either DisplayPort 2.1 or HDMI 2.1 with DSC support. Check both your GPU and monitor specs carefully before buying.

DisplayPort vs HDMI: Which Should You Use for 144Hz?

This is the question that causes the most confusion. Both can work, but one is usually better for your situation.

DisplayPort: The PC Gaming Standard

DisplayPort was designed for computer monitors. It's been the go-to for PC gaming for over a decade, and for good reason.

Pros of DisplayPort for 144Hz:

  • Native Adaptive Sync support (both G-Sync and FreeSync)
  • Higher bandwidth at every generation compared to equivalent HDMI
  • Latching connectors that stay plugged in
  • Supports daisy-chaining multiple monitors
  • DSC available from DP 1.4 onward

Cons of DisplayPort:

  • Not found on consoles (PS5, Xbox only have HDMI)
  • Cable quality varies wildly; cheap cables may not meet spec
  • Longer cable runs can cause signal issues beyond 3 meters

HDMI: The Universal Option

HDMI is everywhere. Your TV, console, laptop, and monitor all have it. For 144Hz gaming, it works but with some caveats.

Pros of HDMI for 144Hz:

  • Universal compatibility across devices
  • HDMI 2.1 supports 4K 120Hz and 1440p 240Hz
  • Better for cable runs up to 5 meters with certified cables
  • eARC support for audio setups

Cons of HDMI:

  • Adaptive Sync support over HDMI is inconsistent (HDMI 2.1 VRR works but implementation varies)
  • No daisy-chaining support
  • Connectors don't latch, so cables can wiggle loose
  • HDMI 2.0 and earlier are limited for high refresh rates at higher resolutions

The Verdict

For PC gaming at 144Hz, use DisplayPort if you have it. It's the more reliable choice for Adaptive Sync and high refresh rates. HDMI 2.1 is a solid alternative, especially if you're connecting a laptop via USB-C (which often outputs DisplayPort over USB-C anyway).

For console gaming, you're stuck with HDMI since the PS5 and Xbox Series X only have HDMI outputs. HDMI 2.1 is required for 4K 120Hz on both consoles.

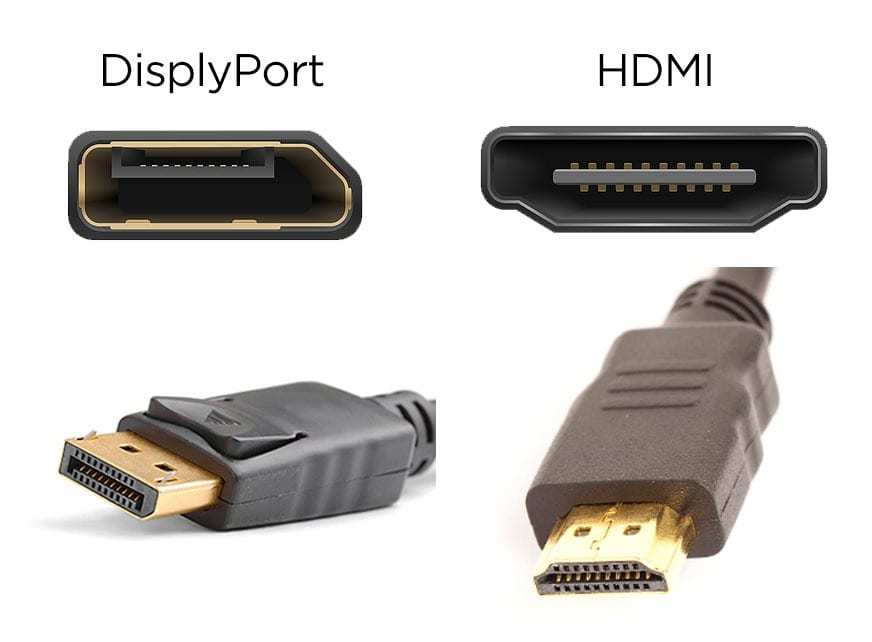

DisplayPort vs HDMI comparison

The Cable Length and Quality Problem Nobody Talks About

Here's something that trips up even experienced builders. Not all cables are created equal, and length matters more than you'd think.

A DisplayPort 1.4 cable rated for full 25.92 Gbps bandwidth might work perfectly at 1 meter but fail at 3 meters. The signal degrades over distance, and cheaper cables often can't maintain the full spec even at shorter lengths.

Cable Length Guidelines

  • Under 2 meters: Most decent cables will handle full bandwidth without issues.
  • 2 to 3 meters: Stick with VESA-certified cables. Look for the DisplayPort logo on the packaging.
  • Over 3 meters: You need an active cable or optical DisplayPort cable. Passive cables at this length often can't maintain signal integrity.

What Makes a Good Cable

You don't need to spend a fortune, but you do need to buy smart:

  • Look for certification: VESA-certified DisplayPort cables and Ultra High Speed HDMI cables have been tested to meet their rated specs.
  • Check the connector quality: Gold-plated connectors resist corrosion. Latching DisplayPort connectors prevent accidental disconnection.
  • Avoid the cheapest options: A $3 no-name cable from an unknown brand might claim DP 1.4 but fail to deliver it. Stick with reputable manufacturers.
  • Don't overspend either: A $15 to $20 certified cable is all you need. Cables priced at $50 or more rarely offer real performance benefits for typical gaming setups.

Active vs Passive Cables

For runs under 3 meters, passive cables are fine. They're just wires with connectors, no electronics involved. Active cables contain signal boosters that maintain integrity over longer distances.

You only need active cables if you're running 3 meters or more, or if you're experiencing flickering or dropouts with a passive cable.

Why Your 144Hz Monitor Is Stuck at 60Hz (Even With the Right Cable)

Windows refresh rate settings

You bought the right cable. You plugged it in. But your monitor is still running at 60Hz.

This is one of the most common frustrations, and it's almost always a settings issue rather than a hardware problem.

Windows Display Settings

Windows doesn't always default to the highest refresh rate. You need to set it manually:

  1. Right-click on your desktop and select Display settings.
  2. Scroll down and click Advanced display settings.
  3. Select your monitor if you have multiple displays.
  4. Click Display adapter properties for Display 1.
  5. Go to the Monitor tab.
  6. Under Screen refresh rate, select 144Hz from the dropdown.
  7. Click Apply and then OK.

If 144Hz doesn't appear in the dropdown, your cable, driver, or port isn't being detected correctly. We'll cover that next.

GPU Control Panel Settings

Both NVIDIA and AMD have their own control panels where you can set the refresh rate:

NVIDIA:

  1. Right-click desktop and select NVIDIA Control Panel.
  2. Under Display, click Change resolution.
  3. Select your monitor and set the refresh rate to 144Hz.
  4. Click Apply.

AMD:

  1. Right-click desktop and select AMD Software.
  2. Go to Display settings.
  3. Set the refresh rate to 144Hz.

Driver Issues

Outdated GPU drivers can prevent higher refresh rates from appearing. Make sure your drivers are current:

  • NVIDIA: Download from nvidia.com or use GeForce Experience.
  • AMD: Download from amd.com or use the AMD Software app.
  • Intel Arc: Download from intel.com.

After updating drivers, restart your PC and check the refresh rate settings again.

The Wrong Port Problem

This catches people constantly. If your motherboard has display outputs AND your graphics card has display outputs, make sure your monitor cable is plugged into the graphics card. The motherboard ports connect to the integrated GPU, which often doesn't support 144Hz.

Look at the back of your PC. The graphics card ports are lower down, usually in the expansion slot area. The motherboard ports are higher up near the USB and audio jacks.

Plug into the card, not the board.

Common Mistakes That Waste Your Money

Let's save you from the errors that send people returning cables and leaving frustrated reviews.

Buying HDMI when DisplayPort is available. If your GPU and monitor both have DisplayPort, use it. DisplayPort handles Adaptive Sync more reliably and has been the PC gaming standard for years.

Assuming all DisplayPort cables are the same. A DP 1.2 cable won't give you DP 1.4 performance just because the connector fits. The cable is rated for the bandwidth it was built for. Check the packaging or product listing for the version number.

Buying a cable based on the monitor's maximum spec. Your cable needs to match the lowest spec in the chain. If your GPU has DP 1.2 and your monitor has DP 1.4, a DP 1.4 cable won't help. You're limited by the GPU's DP 1.2 output.

Ignoring the monitor's user manual. Some monitors have specific port limitations. One HDMI port might be 2.0 while another is 1.4. The manual tells you which port supports the highest refresh rate.

Forgetting to enable Adaptive Sync. Getting 144Hz is only half the battle. If you want G-Sync or FreeSync, you need to enable it in both your GPU control panel and the monitor's on-screen display menu.

Using adapters unnecessarily. DisplayPort to HDMI adapters can work, but they add a potential point of failure and may limit your refresh rate. Use a direct connection whenever possible.

Console Gaming: PS5 and Xbox Series X at High Refresh Rates

Console players have fewer options since the PS5 and Xbox Series X only have HDMI 2.1 outputs. But you can still hit high refresh rates with the right setup.

PS5 at 120Hz

The PS5 supports up to 4K 120Hz over HDMI 2.1. For 1080p or 1440p at 120Hz, you need:

  • An HDMI 2.1 cable (the one included with the PS5 is HDMI 2.1)
  • A monitor with HDMI 2.1 input
  • Game settings that allow 120Hz output

Not all PS5 games support 120Hz. Check each game's settings. Competitive titles like Call of Duty and Fortnite typically offer 120Hz modes.

Xbox Series X at 144Hz

The Xbox Series X supports up to 120Hz at 4K and 144Hz at 1080p/1440p over HDMI 2.1. The setup requirements are similar to PS5:

  • HDMI 2.1 cable
  • Monitor with HDMI 2.1 or DisplayPort 1.4 with an adapter
  • Xbox display settings configured for the desired refresh rate

The Console Cable Recommendation

For console gaming, use the HDMI 2.1 cable that came in the box. If you need a longer one, buy a certified Ultra High Speed HDMI cable. Don't buy a random HDMI cable and assume it supports 2.1 speeds.

Look for the "Ultra High Speed" certification label on the packaging.

Quick Decision Flowchart: Pick Your Cable in 60 Seconds

If you want the fastest possible answer without reading everything above, follow this:

  1. Do you have DisplayPort on both GPU and monitor? Use DisplayPort 1.4 cable. Done.
  2. No DisplayPort but both have HDMI 2.1? Use HDMI 2.1 cable. Works great.
  3. Running 1080p 144Hz with only HDMI 1.4? It'll work but DisplayPort is better if available.
  4. Laptop with USB-C only? Use a USB-C to DisplayPort cable or USB-C to HDMI 2.1 cable, depending on your monitor.
  5. Console gaming? Use the included HDMI 2.1 cable or a certified Ultra High Speed replacement.

That covers 95% of situations. The remaining 5% involves unusual hardware combos that the detailed sections above will help you sort out.

Frequently Asked Questions

Can I use HDMI for 144Hz?

Yes, HDMI supports 144Hz depending on the version. HDMI 2.0 handles 1080p 144Hz and 1440p 144Hz. HDMI 2.1 handles up to 4K 120Hz and 1440p 240Hz.

For PC gaming, DisplayPort is generally preferred for better Adaptive Sync support.

Does cable brand matter for 144Hz?

To an extent. You don't need an expensive brand, but you do need a cable that actually meets its rated specification. Stick with VESA-certified DisplayPort cables or Ultra High Speed certified HDMI cables from known manufacturers.

Will a DisplayPort 1.2 cable work for 144Hz?

At 1080p, yes. At 1440p, it works with reduced blanking but it's at the bandwidth limit. For 1440p 144Hz with full color depth and Adaptive Sync, DisplayPort 1.4 is the better choice.

Why does my monitor say 60Hz when I have a 144Hz monitor?

This is almost always a settings issue. Check Windows display settings, your GPU control panel, and make sure you're plugged into the graphics card rather than the motherboard. Also verify your cable supports the required bandwidth.

Do I need a special cable for G-Sync or FreeSync?

G-Sync works best over DisplayPort. FreeSync works over both DisplayPort and HDMI, though HDMI VRR support varies by monitor. For the most reliable Adaptive Sync experience, use DisplayPort 1.4.

Can I use a USB-C cable for 144Hz?

Yes, if your USB-C port supports DisplayPort Alt Mode. A USB-C to DisplayPort 1.4 cable can carry a full 144Hz signal. This is common for laptops and some modern GPUs that include USB-C outputs.

Chris Nolan is the founder and lead technology editor at TechBink. With over a decade of hands-on experience in consumer electronics, mobile operating systems (Android & iOS), and PC hardware troubleshooting, he tests and benchmarks tutorials directly on real physical devices. Chris specializes in display technology (portable monitors, Mini-LEDs, HDR), Windows 11 system policies, and practical AI workflows.
