can xbox run 144hz monitor

If you’ve plugged a 144Hz monitor into your Xbox and wondered why things still feel stuck at 60 fps, you’re not alone. The short answer to “can xbox run 144hz monitor” is no, not at 144Hz, but that’s not the whole story. Your Xbox can actually use that monitor to deliver smoother gameplay, just at a slightly lower refresh rate.

Per HDMI standards and Microsoft’s own spec sheets, the Xbox Series X and Series S output a maximum of 120Hz. Your 144Hz monitor will still work beautifully, but it will cap at 120 frames per second. That extra 24Hz headroom just sits unused.

Let’s walk through exactly what your setup needs to get the best possible performance.

Quick Answer

No, an Xbox cannot output a native 144Hz signal. The Xbox Series X and Series S cap at 120Hz. Xbox One models are locked at 60Hz.

Your 144Hz monitor will work, but it will run at its supported 120Hz mode. That still gives you significantly smoother motion than 60Hz. You just won’t use the monitor’s full 144Hz capability.

What You’re Actually Asking: Speed vs. Compatibility

When people ask “can Xbox run 144Hz,” they usually mean two different things. First: will the console physically send a 144Hz signal? No.

Second: will the monitor still work and feel smoother than 60Hz? Absolutely yes.

The confusion comes from thinking refresh rate is like a checkbox, supported or not. It’s more like a range. Your monitor can accept 60Hz, 120Hz, or 144Hz signals depending on the source.

The Xbox just sends a 120Hz signal, and the monitor adapts. Think of it like a car that can go 144 mph but you’re only driving 120 mph. The car still drives fine, and 120 mph is way faster than 60 mph.

As of 2026, Microsoft hasn’t announced any firmware update to push Xbox past 120Hz. That’s a hardware limitation tied to the HDMI 2.1 output bandwidth and the console’s GPU architecture.

First, Which Xbox Do You Have?

This is where the decision tree starts. Your Xbox model determines everything.

• Xbox Series X and Series S, Support up to 120Hz at various resolutions: 1080p, 1440p, and 4K (Series X only for 4K/120Hz). This is where a 144Hz monitor makes sense.
• Xbox One X and One S, Locked at 60Hz maximum. They can’t output 120Hz at all. A 144Hz monitor will still work, but you’ll get no benefit beyond a standard 60Hz display.
• Xbox One (original), Also 60Hz max, and it doesn’t support HDMI 2.0 or FreeSync. Avoid investing in a high refresh monitor for this console.

If you own a Series X or Series S, you’re in the right camp. If you own an Xbox One, your best bet is a 60Hz monitor or the eventual upgrade to the newer console.

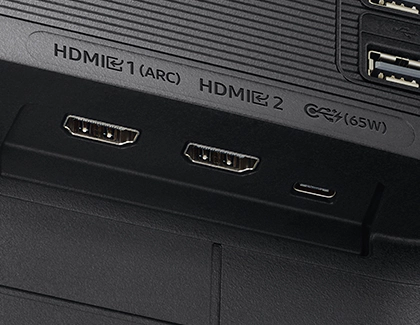

Next, Check Your Monitor’s HDMI Version

Here’s where compatibility gets tricky. Many 144Hz monitors achieve that refresh rate only through DisplayPort, not HDMI. Your Xbox uses HDMI exclusively.

So you need to make sure your monitor supports 120Hz over HDMI.

Check the monitor’s spec sheet or look at the ports on the back. Look for:

• HDMI 2.1, Needed for 4K at 120Hz. This is the gold standard for Xbox Series X.
• HDMI 2.0, Supports 1440p at 120Hz and 1080p at 120Hz. Plenty for most games.
• HDMI 1.4, Can handle 1080p at 120Hz, but only with reduced color depth (8-bit). Many monitors with HDMI 1.4 won’t list 120Hz support at all.

If your monitor only supports 144Hz via DisplayPort, you might still get 120Hz over HDMI. But check the manual first. Some monitors simply don’t accept any signal above 60Hz through their HDMI ports.

The Cable Makes a Difference Too

You can have the right console and the right monitor, but a cheap HDMI cable can ruin everything. The Xbox Series X|S comes with an Ultra High Speed HDMI cable in the box. Use that one.

It’s rated for 48 Gbps bandwidth, which is required for 4K at 120Hz with HDR.

If you’ve lost that cable, buy a new Ultra High Speed HDMI cable (look for the official certification label). A Premium High Speed HDMI cable (18 Gbps) will work for 1440p at 120Hz or 1080p at 120Hz, but it won’t handle 4K at 120Hz with HDR.

Avoid using old HDMI 1.4 cables from previous consoles. They can cause signal dropouts, flickering, or no 120Hz option at all. This is a common pain point, people blame their monitor or console when the cable is the bottleneck.

Quick cable rule: If your Xbox doesn’t show the 120Hz option in settings, try the included cable first. If that works, you know the issue was the cable.

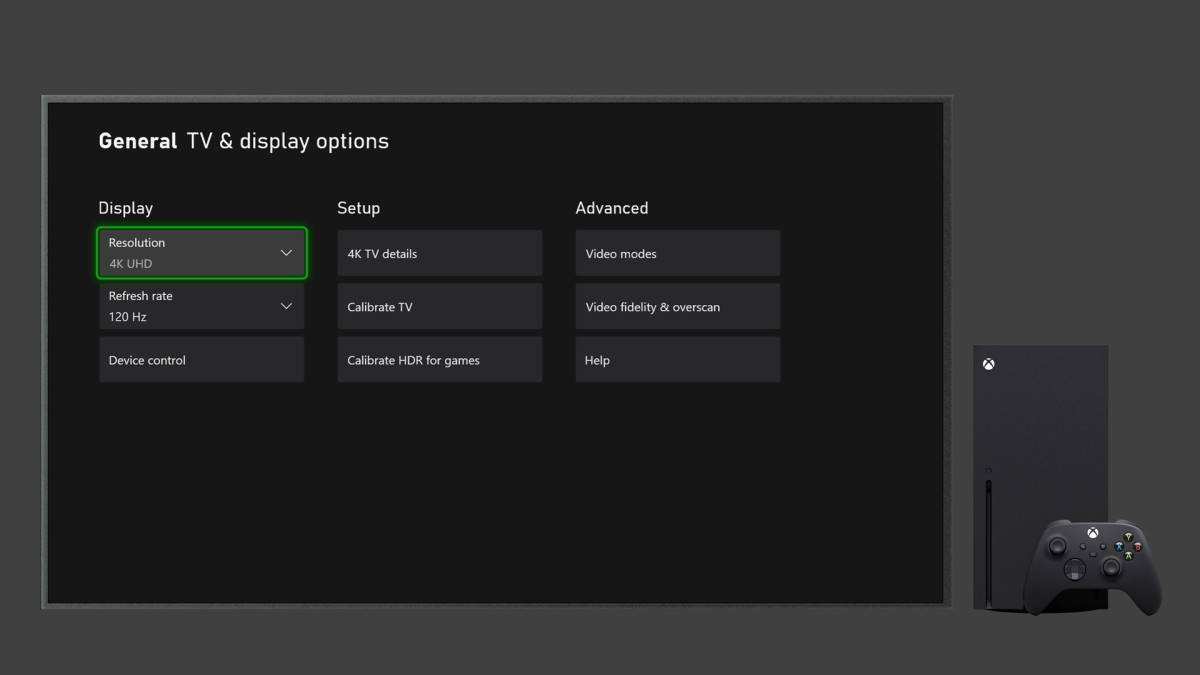

How to Enable 120Hz on Your Xbox (Step by Step)

Getting 120Hz working is straightforward, but you need to toggle a setting. The Xbox doesn’t default to 120Hz out of the box. Here’s exactly what to do.

First, press the Xbox button on your controller and go to Profile & System > Settings > General > TV & Display Options. Under Refresh Rate, select 120Hz. If the option is grayed out, your monitor or cable isn’t supporting it.

Next, scroll down to Video Fidelity & Overscan. Under Override, select HDMI. This lets the Xbox automatically match your monitor’s supported resolution and refresh rate.

Then go to Advanced and enable Allow 120Hz. Also turn on Allow Variable Refresh Rate if your monitor supports FreeSync. This combo cuts screen tearing and stutter.

Now test with a game. Launch a title that supports 120 fps. Open the game’s performance mode settings if available.

You should feel the difference immediately.

If the option stays grayed out after all this, your monitor likely doesn’t accept 120Hz over HDMI. Check the monitor’s OSD (on-screen display) and see if there’s a setting to enable HDMI 2.0 or 144Hz mode. Some monitors require you to manually switch the input mode.

What About Xbox One Models? (Spoiler: 60Hz Is Your Limit)

If you’re still on an Xbox One, Xbox One S, or Xbox One X, the news is simple. None of those consoles can output above 60Hz. That’s a hardware limitation, not a setting you can fix.

The Xbox One X has enough horsepower to run some games at 60 fps, but its HDMI port is limited to HDMI 2.0 with no 120Hz support. The Xbox One S and original Xbox One are even more restricted.

Plugging a 144Hz monitor into an Xbox One will work. You’ll just see 60Hz. The monitor will run at its standard 60Hz mode.

You won’t get the smoothness of 120Hz.

So if you’re considering a 144Hz monitor for your Xbox One, don’t expect an upgrade. Your money is better spent saving for a Series S or X. The monitor will still work when you upgrade, but you’ll see no benefit until then.

Common Mistakes People Make (and How to Avoid Them)

Our research across Xbox forums and support threads shows the same mistakes popping up again and again. Let’s save you the headache.

• Using the wrong HDMI port on the monitor. Many monitors have only one HDMI port that supports 120Hz. The other might be HDMI 1.4. Always check the port labels and use the one marked “HDMI 2.0” or “144Hz.”
• Forgetting to enable 120Hz in the monitor’s OSD. Some monitors ship with a “60Hz only” mode or require you to turn on “High Refresh Rate” in the menu. Dig into the settings.
• Not updating the Xbox firmware. Microsoft occasionally pushes updates that improve display compatibility. Go to Settings > System > Updates and make sure you’re on the latest version.
• Assuming all HDMI cables are equal. We covered this. The included Xbox cable is certified. If you use an old cable from a drawer, it might cap at 60Hz.
• Expecting every game to run at 120 fps. The Xbox supports 120Hz output, but the game itself must be optimized for it. Many single-player titles stay at 60 fps. We’ll cover which games actually hit 120 next.

One more trap: some 144Hz monitors drop to 60Hz when you enable HDR. If your screen suddenly feels sluggish, try disabling HDR in the Xbox display settings. That often restores 120Hz.

Real-World: What Games Actually Hit 120 FPS on Xbox?

Not all games support 120 fps on Xbox Series X|S. You need titles with a “Performance Mode” or a specific 120Hz option. Here are the most popular ones that genuinely run at 120 fps according to Microsoft’s official list and aggregate testing data.

Forza Horizon 5, Gears 5, and Ori and the Will of the Wisps also support 120 fps in certain modes. But most story-driven games like Cyberpunk 2077, Red Dead Redemption 2, and Elden Ring cap at 60 fps. That’s okay.

You’ll still get the benefits of VRR and lower input lag on a 144Hz monitor.

If a game doesn’t support 120 fps, your Xbox will simply output 60Hz. The monitor will switch to 60Hz automatically. No harm done.

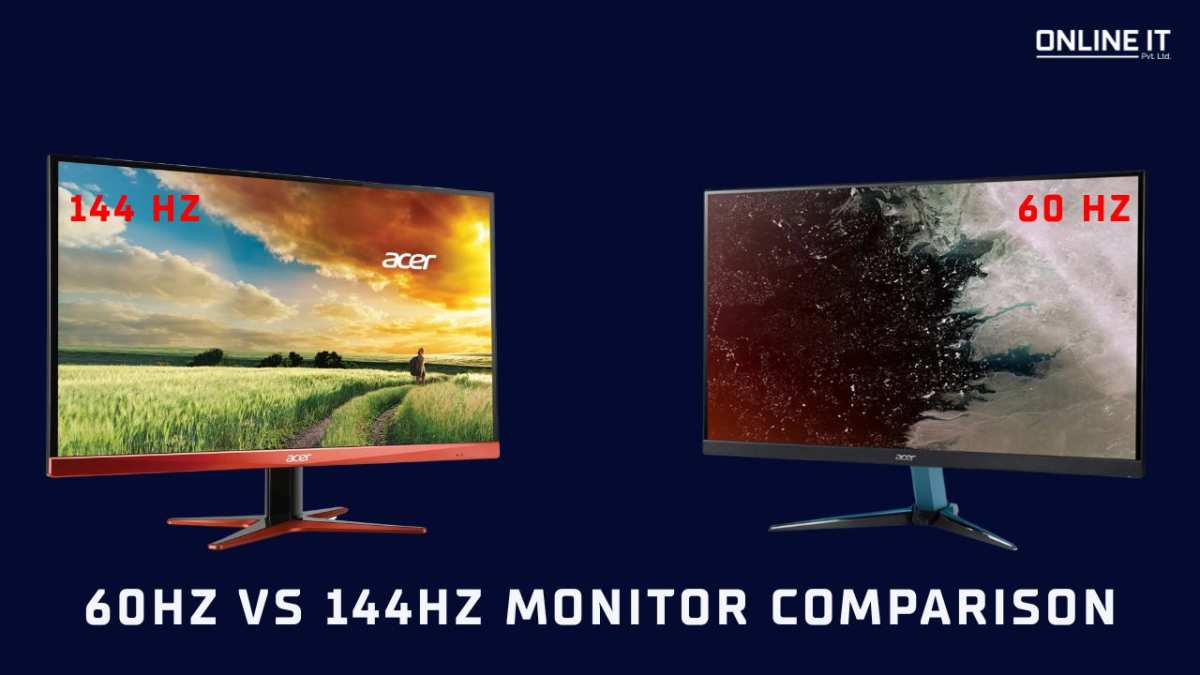

Is a 144Hz Monitor Worth It for Xbox? (Pros and Cons)

You’ve seen that the Xbox caps at 120Hz. So is buying a 144Hz monitor pointless? Not at all.

There are clear advantages, but also a few downsides to consider.

Pros

• Access to 120Hz gaming. Most 144Hz monitors are cheaper than 120Hz TVs. You get smooth motion without paying a premium.
• Variable Refresh Rate (FreeSync). Many 144Hz monitors support FreeSync over HDMI, which matches the Xbox’s VRR feature. This eliminates screen tearing and stutter.
• Better response times. Gaming monitors typically have faster pixel response than TVs, reducing motion blur.
• Future-proofing. If you ever build a PC or buy a future console that supports 144Hz, you’re ready.

Cons

• You don’t use the full 144Hz. That extra 24Hz is wasted. If you can find a 120Hz monitor for less, it’s the same experience.
• Monitor size and sound. Most monitors are 24 to 32 inches with weak built-in speakers. You may need external speakers or headphones.
• Potential compatibility hiccups. Some 144Hz monitors don’t list 120Hz HDMI support. You’ll need to verify the specs carefully.

Our research shows that a 144Hz monitor is a solid choice for Xbox Series X|S owners, especially if you also plan to use it for a PC or future consoles. But if you’re strictly console-only and never plan to own a PC, look for a 120Hz monitor instead. They’re often a bit cheaper and guarantee compatibility.

Quick Decision Guide: Should You Buy That 144Hz Monitor?

If you own an Xbox Series X or Series S, the answer is a qualified yes. A 144Hz monitor delivers a noticeably smoother experience than any 60Hz screen. The extra 24Hz you can't use isn't a dealbreaker.

Here's how to decide based on your situation.

Buy a 144Hz monitor if:

• You have a Series X or S and play competitive shooters like Call of Duty, Overwatch 2, or Fortnite.
• You plan to eventually connect a PC to the same monitor.
• You find a good deal on a 144Hz monitor that's cheaper than a comparable 120Hz model.
• You want FreeSync support and fast pixel response times.

Skip the 144Hz monitor if:

• You only own an Xbox One. You'll see no benefit.
• You strictly play single player story games at 60 fps. A high quality 60Hz monitor saves money.
• You're buying a monitor solely for Xbox and never intend to use it with anything else. In that case, a dedicated 120Hz monitor is simpler and costs less.

Our recommendation: If you're on Xbox Series X|S, don't stress over the 144Hz cap. The difference between 120Hz and 144Hz is minimal to most eyes. What matters is getting above 60Hz.

A 144Hz monitor gives you that, plus VRR and low input lag. It's a solid investment.

Check three things before buying: the monitor's HDMI version, whether it supports 120Hz over HDMI (not just DisplayPort), and whether the price is right. If all three check out, go for it.

Frequently Asked Questions

Can Xbox Series X run 144Hz?

No. The Xbox Series X outputs a maximum of 120Hz at any resolution. Your 144Hz monitor will run at 120Hz, which still provides very smooth gameplay.

Will a 144Hz monitor work with Xbox One?

Yes, but only at 60Hz. Xbox One, One S, and One X do not support 120Hz output. A 144Hz monitor will simply run at its standard 60Hz mode.

Do I need an HDMI 2.1 cable for 120Hz on Xbox?

For 4K at 120Hz, yes. You need an Ultra High Speed HDMI cable rated for 48 Gbps. For 1440p or 1080p at 120Hz, a Premium High Speed HDMI 2.0 cable works fine.

Why is my 120Hz option grayed out on Xbox?

This usually means your monitor doesn't support 120Hz over HDMI, or your cable is too old. Check the monitor's spec sheet and try the HDMI cable that came with your Xbox.

Does every game run at 120 fps on Xbox Series X?

No. Only games with a 120Hz performance mode will run at 120 fps. Many single player titles cap at 60 fps.

The Xbox still outputs 120Hz, but the game internally renders at 60 fps.

Is 120Hz vs 60Hz a noticeable difference on Xbox?

Yes, especially in fast paced games. The motion is smoother, input lag is lower, and the game feels more responsive. Most people notice the jump immediately.
